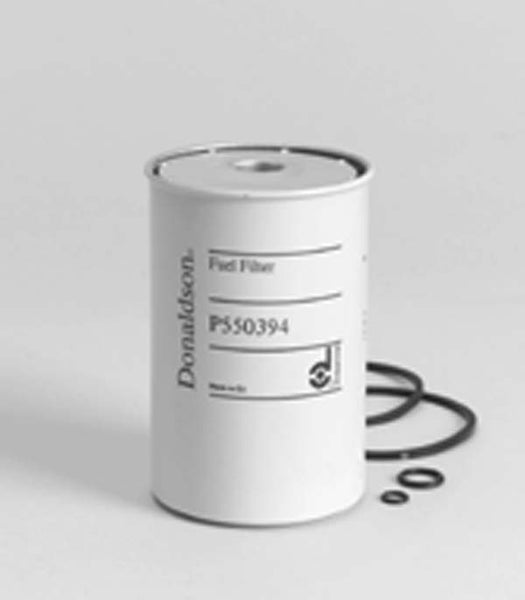

L8506F | Luber-Finer | Can-Type Fuel Element | OFS # 97-28-0881

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.50 IN (88.90 MM)

Outer Diameter, Bottom: 3.33 IN (84.58 MM)

Inner Diameter, Top: 0.74 IN (18.80 MM)

Inner Diameter, Bottom: 1.50 IN (38.10 MM)

Length: 5.28 IN (134.11 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN / BOLT H

Packaging Specifications
Number per Carton: 1

Carton Weight: 8.20 LB (3.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
