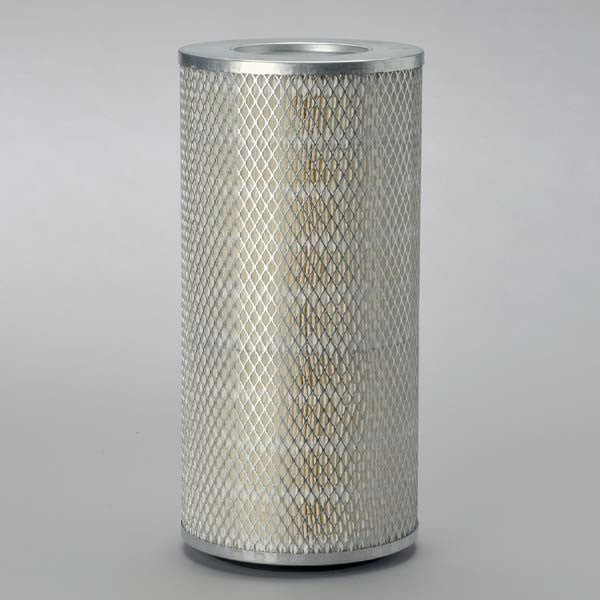

LAF725AM | Luber-Finer | OFS # 97-28-1599
Performance Data
Micron Rating: 15.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.34 IN (186.44 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 0.38 IN (9.65 MM)
Inner Diameter, Bottom: 4.00 IN (101.60 MM)
Length: 15.28 IN (388.11 MM)
Thread:
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.10 LB (1.86 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
