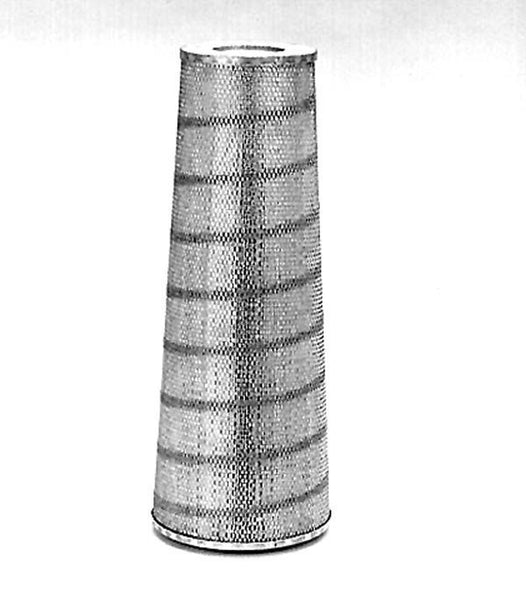

LAF9472 | Luber-Finer | OFS # 97-22-0838
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 175 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.75 IN (146.05 MM)
Outer Diameter, Bottom: 8.69 IN (220.73 MM)
Inner Diameter, Top: 0.18 IN (4.57 MM)
Inner Diameter, Bottom: 5.20 IN (132.08 MM)
Length: 29.00 IN (736.60 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.20 LB (2.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
