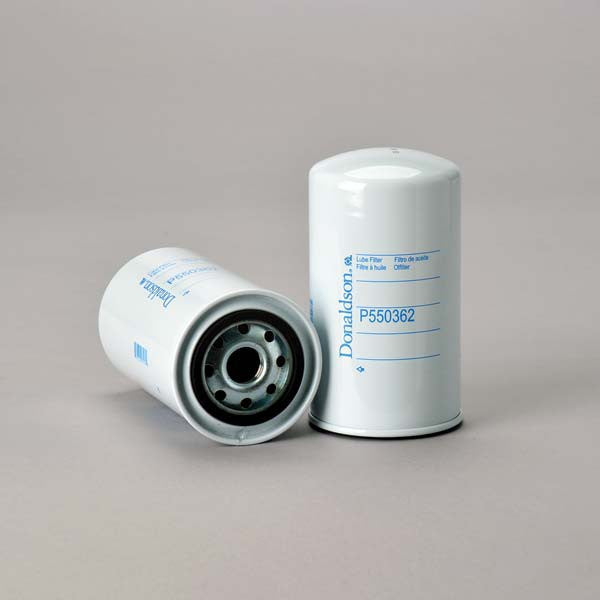

LFP2234 | Luber-Finer | OFS # 97-25-0485
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 23.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.68 IN (93.47 MM)
Outer Diameter, Bottom: 3.68 IN (93.47 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 6.85 IN (173.99 MM)
Thread: 1-12 UNF
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.30 LB (0.59 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
