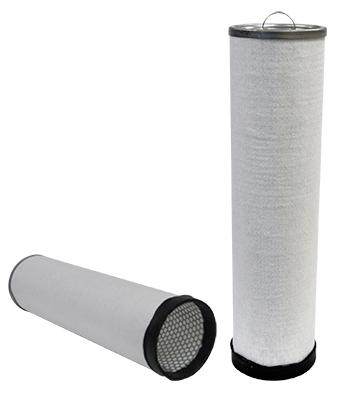

PZC-336-CE | Peco | OFS # 97-10-0833

 Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  0.30 ABSOLUTE

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  275 F

Direction of Flow:  OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top:  4.50 IN   (114.30 MM)

Outer Diameter, Bottom:  4.50 IN   (114.30 MM)

Inner Diameter, Top:  3.10 IN   (78.74 MM)

Inner Diameter, Bottom:  0.62 IN   (15.75 MM)

Length:  36.00 IN   (914.40 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  URETHANE

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  GLASS

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN W/BH

Packaging Specifications
Number per Carton:  4

Carton Weight:  24.00 LB   (10.89 KG)
