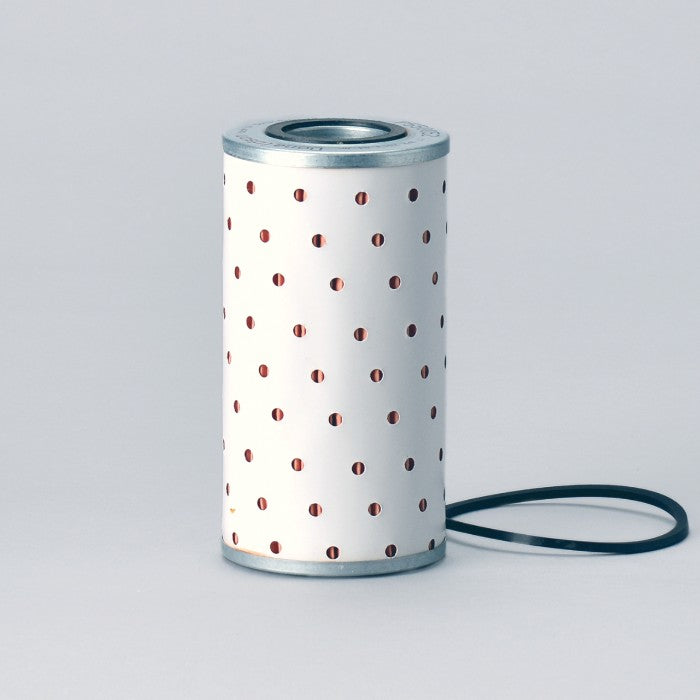

0003571013 | Renault | OFS # 97-01-0348

Shipping & Packaging Specifications

Stock Status: In Stock

Lead Time: Usually Ships In 24-48 Hours

Shipping Service: UPS Ground

Carton Weight:  4.30 LB   (1.95 KG)

Number per Carton:  1 Pleated Paper Filter Element

Performance Data

Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications

Outer Diameter, Top:  2.75 IN   (69.85 MM)

Outer Diameter, Bottom:  2.75 IN   (69.85 MM)

Inner Diameter, Top:  1.31 IN   (33.27 MM)

Inner Diameter, Bottom:  1.31 IN   (33.27 MM)

Length:  5.33 IN   (135.38 MM)

Thread:  NONE

Physical Specifications

Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - PAPER

Configuration:  DOUBLE OPEN END

***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacturer parts, Names and part # used for cross reference only.***
