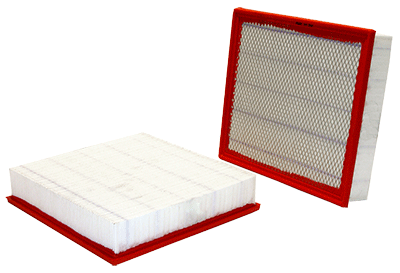

QSA45047| Quaker State | Panel Air Filter Element | OFS # 97-28-9426

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  11.81 IN   (299.97 MM)

Thread:  N/A AIR PANEL

Physical Specifications
Handle:  NONE

Seal Material:  PLASTISO

Type of Adhesive:

Type of Endcap:  NONE

Center Tube:  NONE

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  N/A 2.30 X 10.75

Packaging Specifications
Number per Carton:  6

Carton Weight:  1.50 LB   (0.68 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
