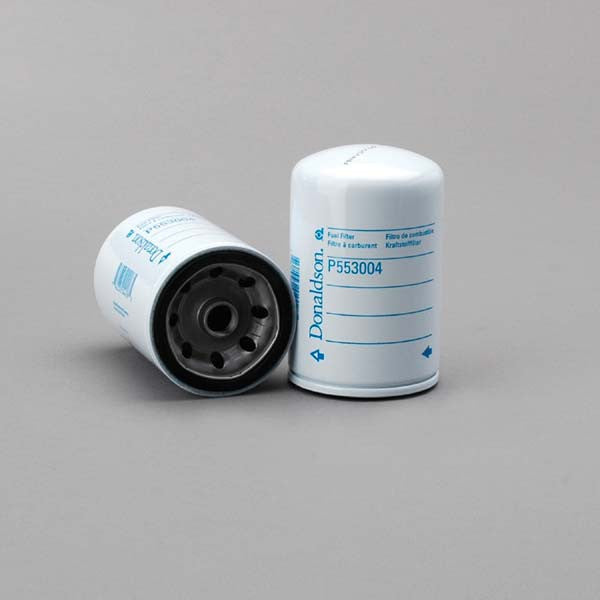

6005000788 | Renault | Fuel Filter Spin-On Filter Element | OFS # 97-28-0246

Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  4.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.05 IN   (77.47 MM)

Outer Diameter, Bottom:  3.05 IN   (77.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  4.92 IN   (124.97 MM)

Thread:  M16X1.5-6HINT

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  11.20 LB   (5.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
