7700042054 | Renault | OFS # 97-22-0818

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.53 IN (242.06 MM)

Outer Diameter, Bottom: 9.53 IN (242.06 MM)

Inner Diameter, Top: 5.18 IN (131.57 MM)

Inner Diameter, Bottom: 0.44 IN (11.18 MM)

Length: 19.50 IN (495.30 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: N/A

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES

Configuration: SINGLE W/BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 12.00 LB (5.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

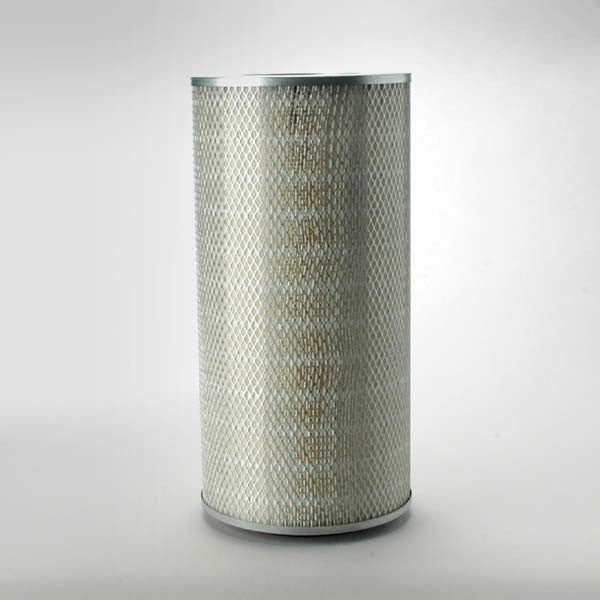

Intake Air Filter Element
