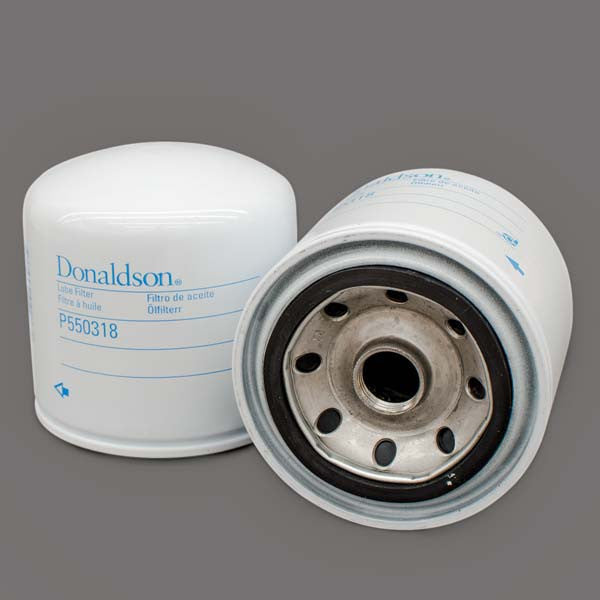

7700640175 | Renault | OFS # 97-25-0421
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 15.00
Beta Rating: N/A BPV 17.40
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.68 IN (93.47 MM)
Outer Diameter, Bottom: 3.68 IN (93.47 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 3.62 IN (91.95 MM)
Thread: 3/4-16 UNF-2B
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN SPIN -ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 12.20 LB (5.53 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
