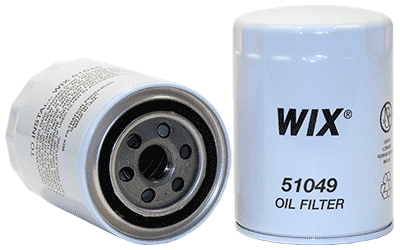

17 | WIX | Spin-On Element | OFS # 97-25-0477
Additional Options.
Lead Time: Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.69 IN (93.73 MM)
Outer Diameter, Bottom: 3.69 IN (93.73 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 5.38 IN (136.65 MM)
Thread: 13/16-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 13.80 LB (6.26 KG)
