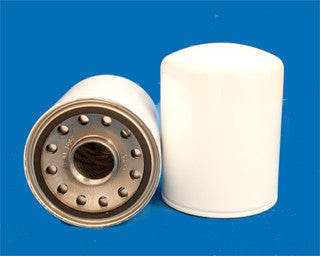

250025525 | SULLAIR | OFS # 97-25-0307
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: BETA19 = 75
Collapse Pressure Rating: 80 PSI
Maximum Temperature: 210 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: INTERCHANGE FOR SULLAIR PART NO. 250025-525
Dimensional Specifications
Outer Diameter, Top: 5.25 IN (133.35 MM)
Outer Diameter, Bottom: 5.25 IN (133.35 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 6.25 IN (158.75 MM)
Thread: 1 1/4"-11 BSP
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: NONE
Center Tube: STEEL
Type of Media: MICROGLASS
Filter Area: 3.77 SQ.FT.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 6
Carton Weight: 18.00 LB (8.16 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
