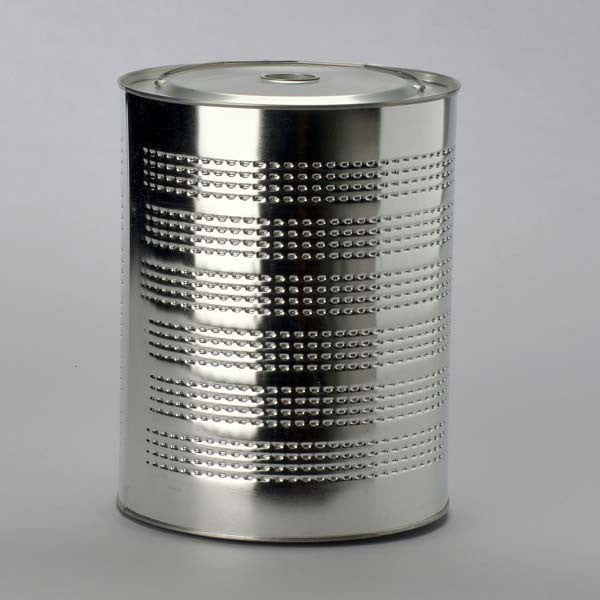

3280 | Luber-Finer | OFS # 97-28-0585
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 10.00 25
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: USED IN LUBER-FINER 500 SIZE HOUSING.
Dimensional Specifications
Outer Diameter, Top: 7.72 IN (196.09 MM)
Outer Diameter, Bottom: 7.72 IN (196.09 MM)
Inner Diameter, Top: 1.10 IN (27.94 MM)
Inner Diameter, Bottom:
Length: 10.06 IN (255.52 MM)
Thread: NONE
Physical Specifications
Handle: YES
Seal Material: NONE
Type of Adhesive: NONE
Type of Endcap: ALUMINUM
Center Tube: ALUMINUM
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.58 LB (2.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
