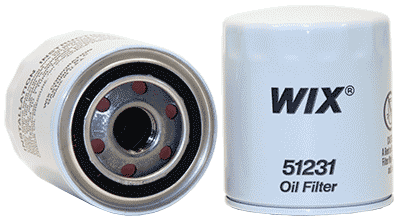

51231 | WIX | Spin-On Element | OFS # 97-25-0854
SPIN-ON ELEMENT Spin-On Element
Performance Data
Micron Rating: 25.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.69 IN (93.73 MM)
Outer Diameter, Bottom: 3.69 IN (93.73 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 4.34 IN (110.24 MM)
Thread: 1-12
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube:
Type of Media:
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: NONE
Configuration: SINGLE OPEN/SPIN-ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 11.40 LB (5.17 KG)
