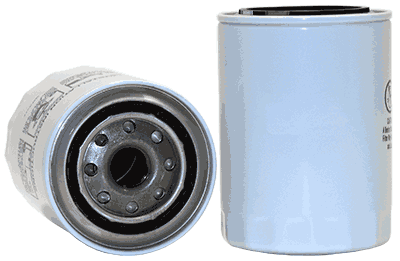

551755 | WIX | Spin-On Element | OFS # 97-25-0541
SPIN-ON ELEMENT Spin-On Element
Lead Time: Usually Ships In 24-48 Hours
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 20.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.71 IN (94.23 MM)
Outer Diameter, Bottom:
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 4.18 IN (106.17 MM)
Thread: 7/8-14 UNF-2B
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN SPIN-ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.10 LB (0.50 KG)
