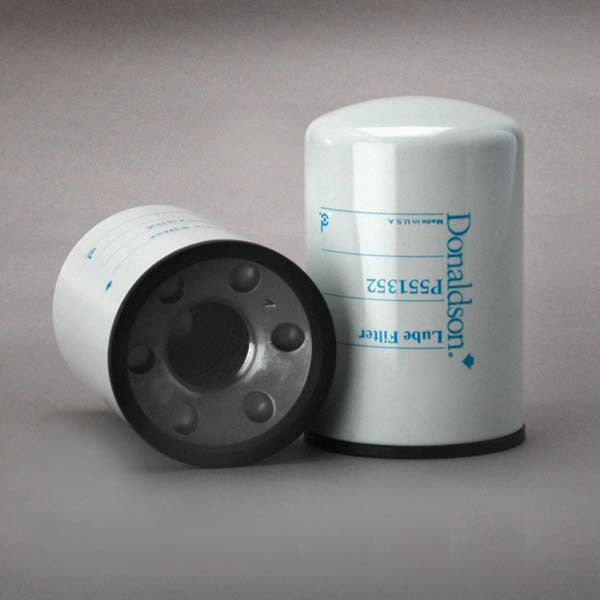

6003021346 | Renault | Spin-On Element | OFS # 97-25-0682

SPIN-ON ELEMENT Spin-On Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  20.00

Beta Rating:  N/A BPV 22.04

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.77 IN   (95.76 MM)

Outer Diameter, Bottom:  3.77 IN   (95.76 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.75 IN   (146.05 MM)

Thread:  1 1/2-16

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  16.30 LB   (7.39 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
