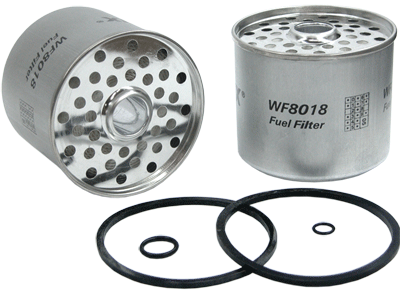

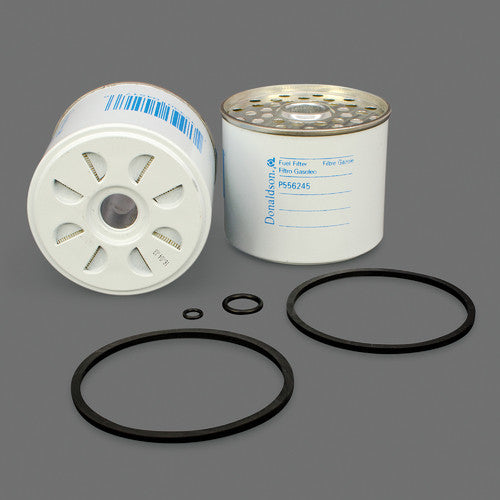

6005000894 | Renault | Fuel Filter Element | OFS # 97-28-0187

FUEL FILTER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 4.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.44 IN (87.38 MM)

Outer Diameter, Bottom: 3.44 IN (87.38 MM)

Inner Diameter, Top: 0.75 IN (19.05 MM)

Inner Diameter, Bottom: 1.50 IN (38.10 MM)

Length: 2.81 IN (71.37 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weig 6.00 LB (2.72 KG) | ** Names and part # used for cross reference only. ** Please contact us to check the availability of broken cartons. A $10 fee may apply for breaking carton quantities **
