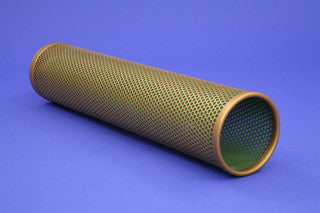

608061 | KAYDON | OFS # 97-17-0014

Performance Data
Micron Rating: 150.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES KAYDON # 36W91

Dimensional Specifications
Outer Diameter, Top: 4.50 IN (114.30 MM)

Outer Diameter, Bottom: 4.50 IN (114.30 MM)

Inner Diameter, Top: 3.94 IN (100.08 MM)

Inner Diameter, Bottom: 0.50 IN (12.70 MM)

Length: 21.50 IN (546.10 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: EPOXY

Type of Endcap: ALUMINUM/NYLON

Center Tube: NONE

Type of Media: 304 SS/TEFLON

Filter Area: SQ.IN.

Plating: ANODIZED

Outer Jacket: YES - ALUMINUM

Configuration: SINGLE OPEN END/BH

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
