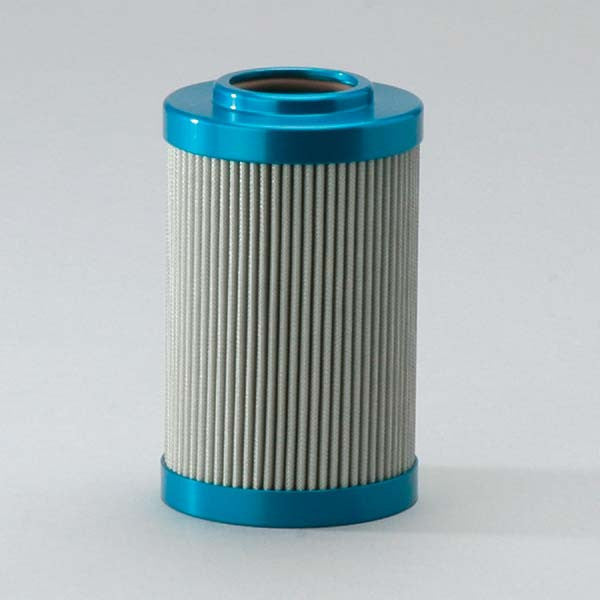

6221 | Ingersoll Rand | Pleated Microglass Element | OFS # 97-05-1036
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 3.00 ABSOLUTE
Beta Rating: B3=200
Collapse Pressure Rating: 3000 PSID
Maximum Temperature: 225 F
Direction of Flow: IN -> OUT
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 2.75 IN (69.85 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 1.13 IN (28.70 MM)
Inner Diameter, Bottom:
Length: 13.75 IN (349.25 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: N/A
Type of Endcap: CORROSION REISITANT STEEL
Center Tube: CORROSION REISITANT STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.00 LB (1.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
