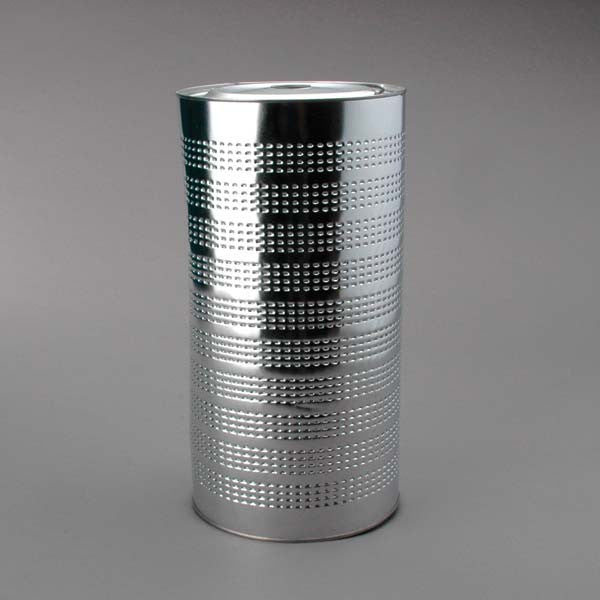

750W | Luber-Finer | OFS # 97-28-0384
Performance Data
Micron Rating: 5.00
Beta Rating:
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.72 IN (196.09 MM)
Outer Diameter, Bottom: 7.72 IN (196.09 MM)
Inner Diameter, Top: 1.10 IN (27.94 MM)
Inner Diameter, Bottom:
Length: 15.06 IN (382.52 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive: POLYVINYLCHLORIDE
Type of Endcap: CARBON STEEL
Center Tube: CARBON STEEL
Type of Media: COTTON
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 31.00 LB (14.06 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
