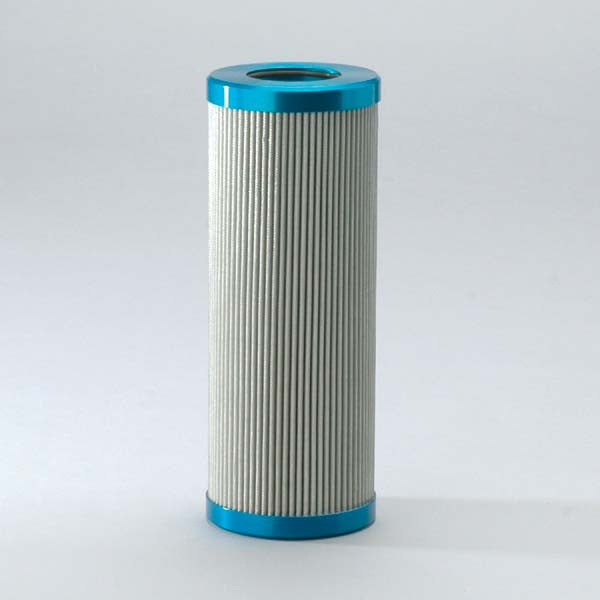

D141G10B | Filtrec | Pleated Microglass Element | OFS # 97-F9601-8K12B
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 12.00 ABSOLUTE
Beta Rating: B12 = 200
Collapse Pressure Rating: 3000 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 3.10 IN (78.74 MM)
Outer Diameter, Bottom: 3.10 IN (78.74 MM)
Inner Diameter, Top: 1.72 IN (43.69 MM)
Inner Diameter, Bottom:
Length: 8.30 IN (210.82 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.00 LB (1.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
