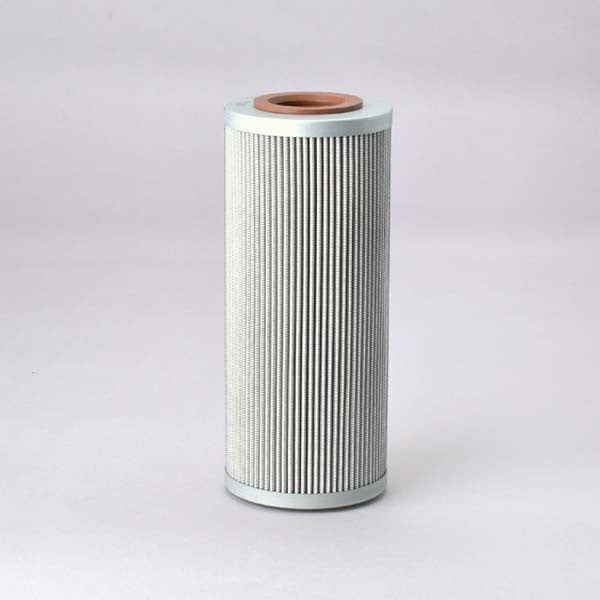

F2525F | Textron | Pleated Microglass Element | OFS # 97-F9700-9K12B
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 12.00 ABSOLUTE
Beta Rating: B12 = 200
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)
Outer Diameter, Bottom: 3.90 IN (99.06 MM)
Inner Diameter, Top: 1.60 IN (40.64 MM)
Inner Diameter, Bottom: 1.60 IN (40.64 MM)
Length: 9.10 IN (231.14 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: 790 SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
