FC236K | Gpc | OFS # 97-22-0784

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  6.09 IN   (154.69 MM)

Outer Diameter, Bottom:  7.81 IN   (198.37 MM)

Inner Diameter, Top:  0.75 IN   (19.05 MM)

Inner Diameter, Bottom:  3.51 IN   (89.15 MM)

Length:  10.28 IN   (261.11 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END/BH

Packaging Specifications
Number per Carton:  1

Carton Weight:  3.00 LB   (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

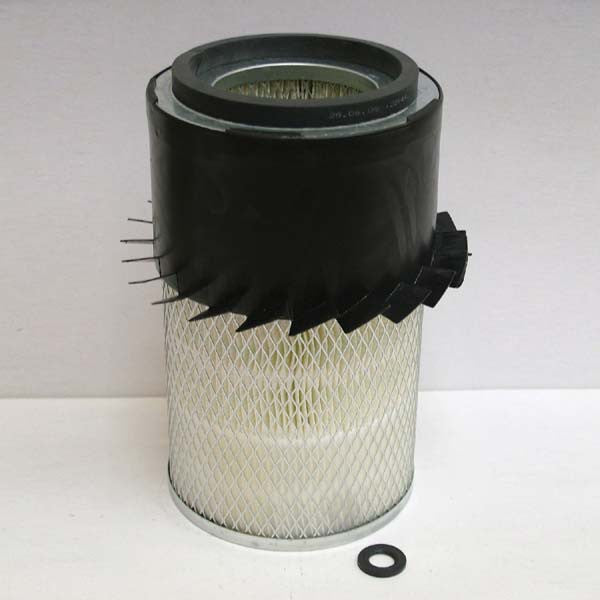

Intake Air Filter Element
