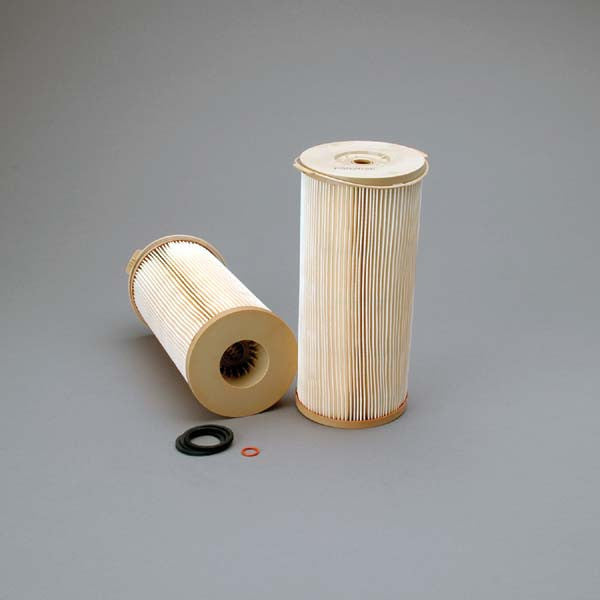

FFR-8217 | Fleetrite | Fuel Water Separator Element | OFS # 97-28-0104

Performance Data
Micron Rating:  2.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.29 IN   (108.97 MM)

Outer Diameter, Bottom:  4.29 IN   (108.97 MM)

Inner Diameter, Top:  0.65 IN   (16.51 MM)

Inner Diameter, Bottom:  0.83 IN   (21.08 MM)

Length:  8.78 IN   (223.01 MM)

Thread:  NONE

Physical Specifications
Handle:  YES

Seal Material:  BUNA-N

Type of Adhesive:  N/A

Type of Endcap:  PLASTIC/METAL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  N/A

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN WITH B/H

Packaging Specifications
Number per Carton:  12

Carton Weight:  14.00 LB   (6.35 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
