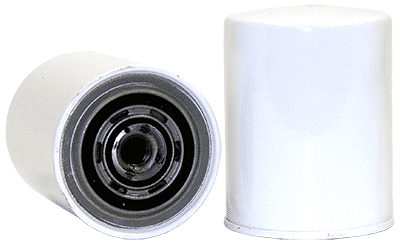

I420M | Velcon | Liquid Coalescer Element | OFS # 97-16-0001

Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 2.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 40 PSID

Maximum Temperature: 225 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES KAYDON MODEL# CI3520-02-4, PART# A910034

Dimensional Specifications
Outer Diameter, Top: 3.38 IN (85.85 MM)

Outer Diameter, Bottom: 3.38 IN (85.85 MM)

Inner Diameter, Top: 1.19 IN (30.23 MM)

Inner Diameter, Bottom: 1.19 IN (30.23 MM)

Length: 20.00 IN (508.00 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: ALUMINUM

Center Tube: NONE

Type of Media: PAPER/GLASS

Filter Area: 1400 SQ.IN.

Plating: ANODIZED

Outer Jacket: YES - SOCK

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight 12.90 LB (5.85 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
