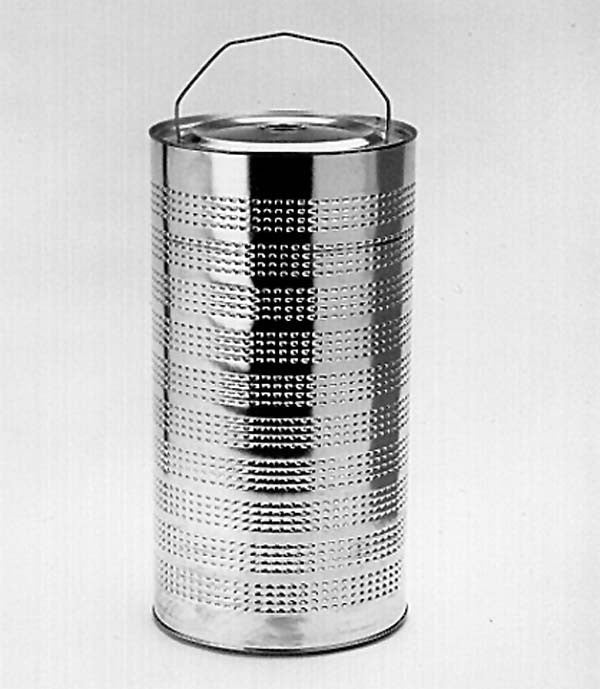

L750P | Luber-Finer | OFS # 97-28-1309

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.69 IN (195.33 MM)

Outer Diameter, Bottom: 7.69 IN (195.33 MM)

Inner Diameter, Top: 0.88 IN (22.35 MM)

Inner Diameter, Bottom: 0.88 IN (22.35 MM)

Length: 15.12 IN (384.05 MM)

Thread: NONE

Physical Specifications
Handle: YES

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 32.00 LB (14.51 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
