LAF1804 | Luber-Finer | OFS # 97-22-0606

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  9.29 IN   (235.97 MM)

Outer Diameter, Bottom:  7.38 IN   (187.45 MM)

Inner Diameter, Top:  0.67 IN   (17.02 MM)

Inner Diameter, Bottom:  4.74 IN   (120.40 MM)

Length:  15.32 IN   (389.13 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE/LID/BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  5.30 LB   (2.40 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

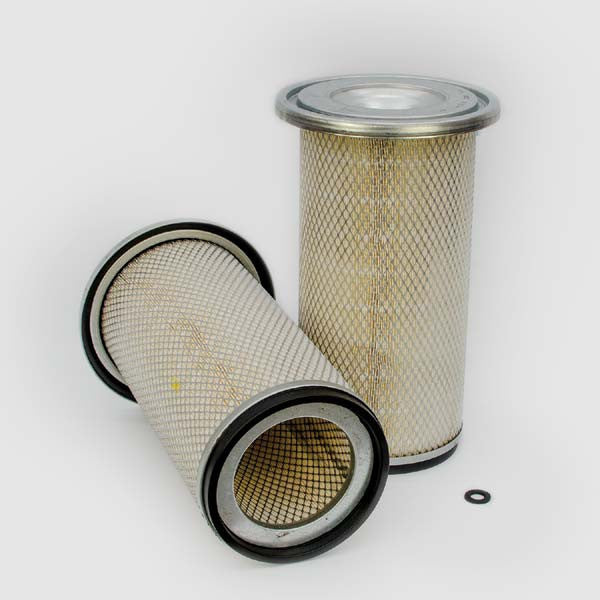

Intake Air Filter Element
