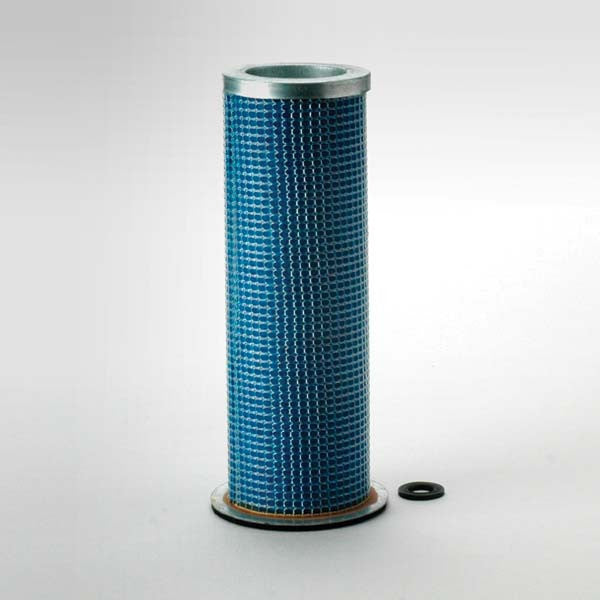

LAF1971 | Luber-Finer | OFS # 97-22-0998
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.38 IN (85.85 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 0.63 IN (16.00 MM)
Inner Diameter, Bottom: 2.91 IN (73.91 MM)
Length: 10.06 IN (255.52 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: FELT
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES - METAL
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.10 LB (0.50 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
