LAF8657 | Luber-Finer | OFS # 97-22-1966
Performance Data
Micron Rating: 15.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 12.91 IN (327.91 MM)
Outer Diameter, Bottom: 12.89 IN (327.41 MM)
Inner Diameter, Top: 8.56 IN (217.42 MM)
Inner Diameter, Bottom: 0.41 IN (10.41 MM)
Length: 24.35 IN (618.49 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE / BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 14.20 LB (6.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

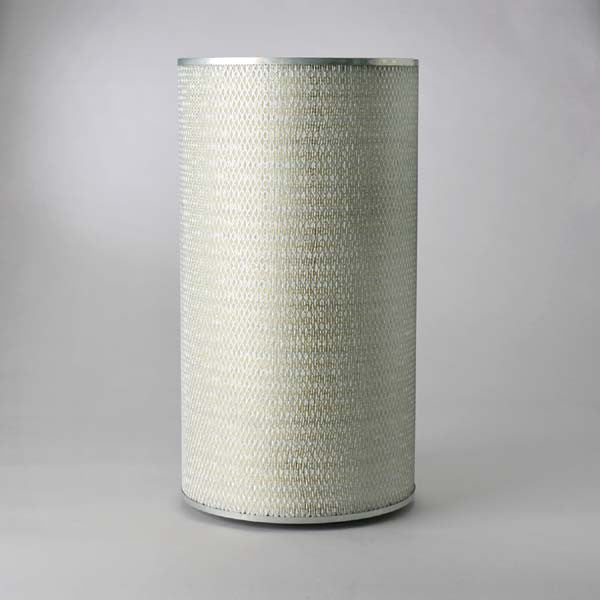

Intake Air Filter Element
