LAF930 | Luber-Finer | OFS # 97-22-0785
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.06 IN (179.32 MM)
Outer Diameter, Bottom: 7.06 IN (179.32 MM)
Inner Diameter, Top: 4.37 IN (111.00 MM)
Inner Diameter, Bottom: 4.37 IN (111.00 MM)
Length: 20.09 IN (510.29 MM)
Thread: NONE
Physical Specifications
Handle: YES
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 5.10 LB (2.31 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

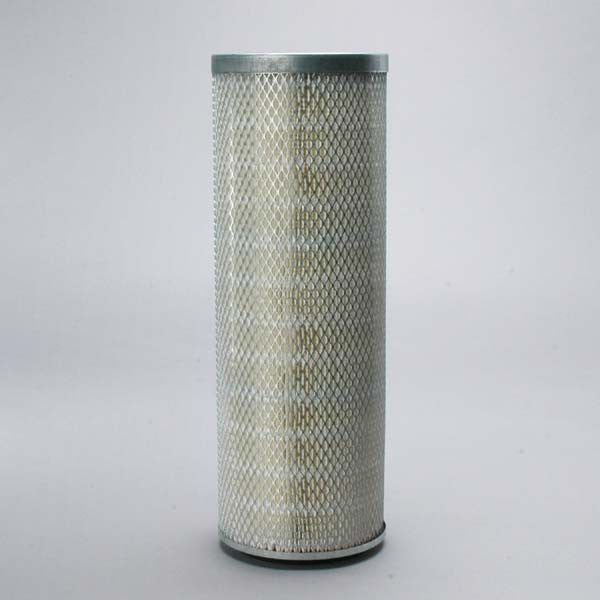

Intake Air Filter Element
