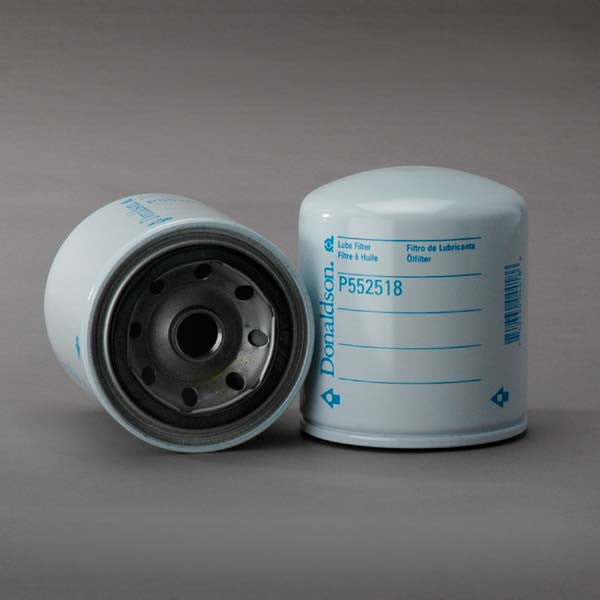

LP2277 | Luber-Finer | OFS # 97-01-0713

Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  18.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.69 IN   (93.73 MM)

Outer Diameter, Bottom:  3.69 IN   (93.73 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  4.13 IN   (104.90 MM)

Thread:  3/4-16

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  N/A

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  13.40 LB   (6.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
