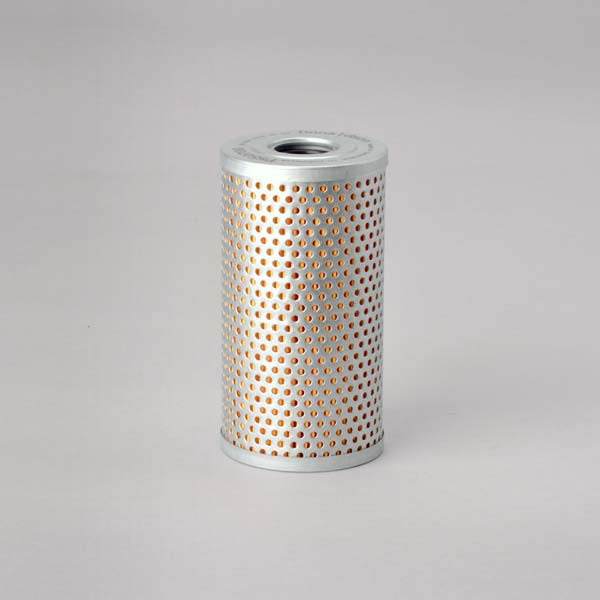

LP5010 | Luber-Finer | OFS # 97-01-0687

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES BALDWIN FILTERS INC 12658 P/N PT-480

Dimensional Specifications
Outer Diameter, Top: 2.97 IN (75.44 MM)

Outer Diameter, Bottom: 2.90 IN (73.66 MM)

Inner Diameter, Top: 1.04 IN (26.42 MM)

Inner Diameter, Bottom:

Length: 5.65 IN (143.51 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 6.00 LB (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
