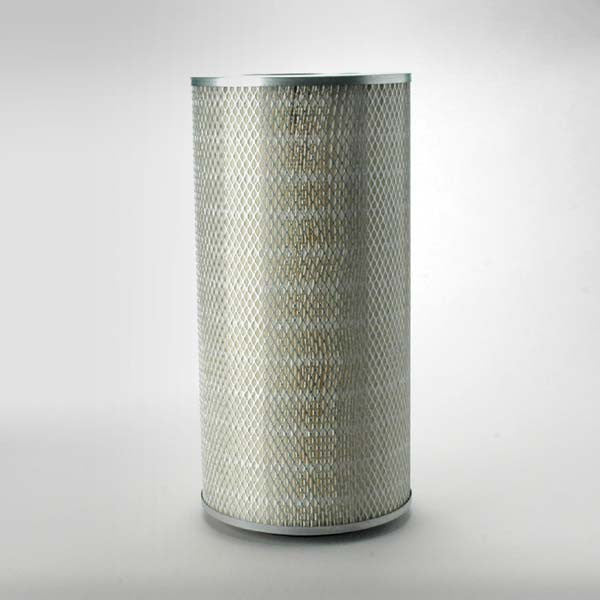

MAT684 | M Filter | OFS # 97-22-0818

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  NOT RATED

Maximum Temperature:  300 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  9.53 IN   (242.06 MM)

Outer Diameter, Bottom:  9.53 IN   (242.06 MM)

Inner Diameter, Top:  5.18 IN   (131.57 MM)

Inner Diameter, Bottom:  0.44 IN   (11.18 MM)

Length:  19.50 IN   (495.30 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  N/A

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  N/A

Plating:  N/A

Outer Jacket:  YES

Configuration:  SINGLE W/BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  12.00 LB   (5.44 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
