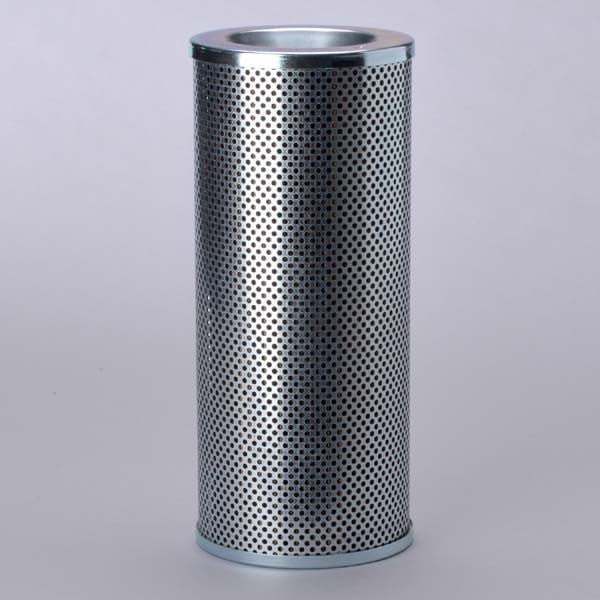

MR6302P10A | Mp Filtri | OFS # 97-28-0085

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 212 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.96 IN (125.98 MM)

Outer Diameter, Bottom: 4.96 IN (125.98 MM)

Inner Diameter, Top: 3.62 IN (91.95 MM)

Inner Diameter, Bottom: 0.41 IN (10.41 MM)

Length: 11.42 IN (290.07 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NBR

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: NONE

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE W/ BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.70 LB (1.22 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
