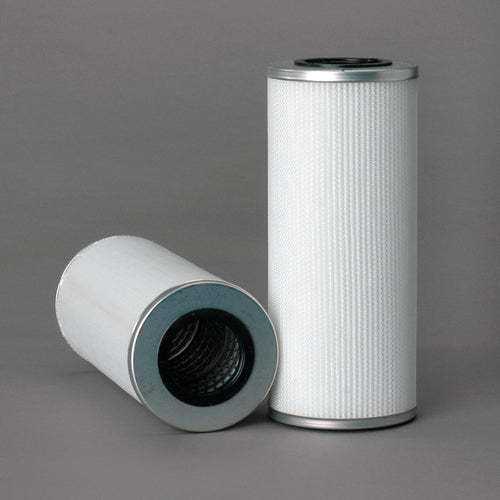

P568081 | Donaldson | Hydraulic Filter, Cartridge | OFS # 97-05-2048

Product Attributes

Performance Data
Micron Rating: 5.00 ABSOLUTE
Beta Rating:B3=200

Efficiency Beta 1000:
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID


Dimensional Specifications
Outer Diameter, Top: 3.83 Inches (97.22 MM)
Outer Diameter, Bottom: 3.83 Inches (97.22 MM)
Inner Diameter, Top: 1.90 Inches (48.3 MM)
Inner Diameter, Bottom: 1.90 Inches (48.33 MM)
Length: 9.19 Inches (233.40 MM)
Thread: NONE


Physical Specifications

Style: Cartridge
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: CORROSION RESISTANT STEEL
Center Tube: CORROSION RESISTANT STEEL
Media Type: Synthetic
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration: DOUBLE OPEN END
