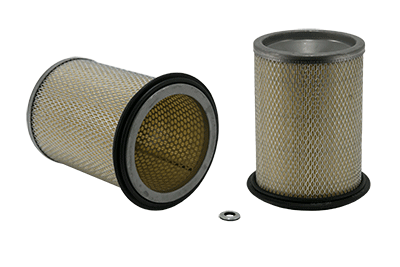

QSA1516SY| Quaker State | OFS # 97-28-1339

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  7.60 IN   (193.04 MM)

Outer Diameter, Bottom:  6.41 IN   (162.81 MM)

Inner Diameter, Top:  5.27 IN   (133.86 MM)

Inner Diameter, Bottom:  0.67 IN   (17.02 MM)

Length:  9.06 IN   (230.12 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END/BH

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.80 LB   (1.27 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

Intake Air Filter Element
