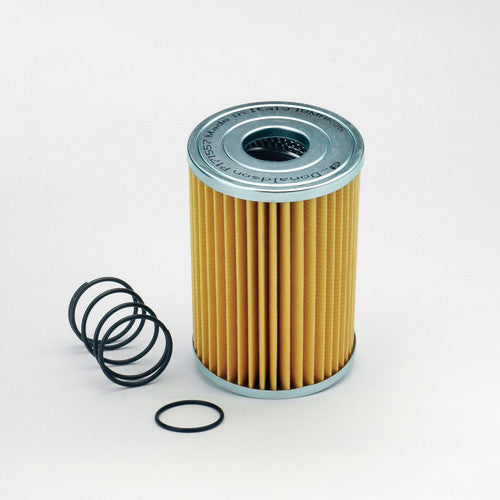

R151C10B| 3B Filters | Pleated Paper Element | OFS # 97-01-3505

PLEATED PAPER ELEMENT

Performance Data
Micron Rating:  10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  5.12 IN   (130.05 MM)

Outer Diameter, Bottom:  5.12 IN   (130.05 MM)

Inner Diameter, Top:  2.03 IN   (51.56 MM)

Inner Diameter, Bottom:  2.03 IN   (51.56 MM)

Length:  8.03 IN   (203.96 MM)

Thread:  NONE

Physical Specifications
Handle:  YES

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
