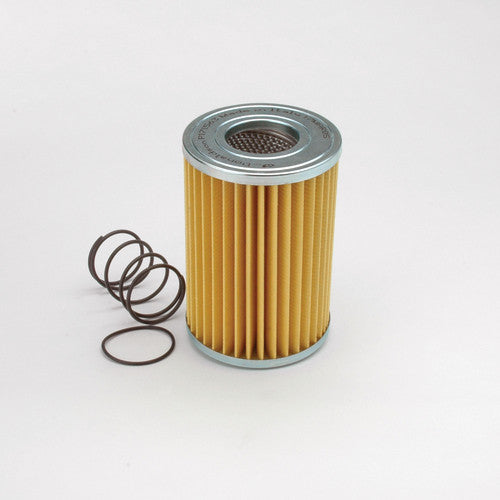

R160C10B| 3B Filters | Return Line Filter OFS # 97-01-3342

RETURN LINE FILTER Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  10.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  5.12 IN   (130.05 MM)

Outer Diameter, Bottom:  5.12 IN   (130.05 MM)

Inner Diameter, Top:  2.56 IN   (65.02 MM)

Inner Diameter, Bottom:

Length:  7.80 IN   (198.12 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  914 SQ.IN.

Plating:  NONE

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
