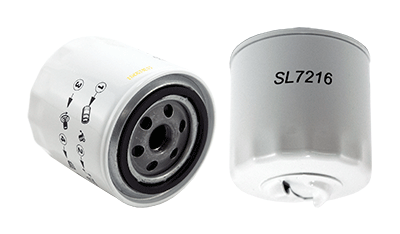

WIX Spin-on Filter Element | WL7216
***Image may vary***

WIX Spin-on Lube Filter Element | WL7216 | OFS # 97-25-0706

Lube Filter Element


PLEASE CALL FOR AVAILABILITY

Performance Data
Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  2.96 IN   (75.18 MM)

Outer Diameter, Bottom:  2.96 IN   (75.18 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  4.75 IN   (120.65 MM)

Thread:  3/4-16 UNS-2B



Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  12

Carton Weight:  10.00 LB   (4.54 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
